Rotational diffuser with external dimensions of 593 x 593 mm, consisting of a flat, white-lacquered plate with slots. Characterized by the system used for securing the blades and their orientation. These blades can be fixed precisely at angles of 22º, 47º, or 62º.

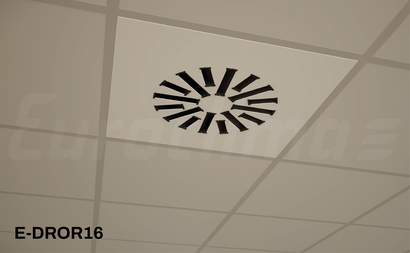

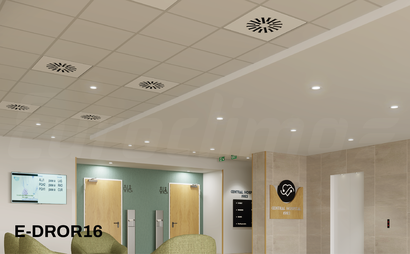

E-DROR16: Rotational diffuser with 16 slots. Also available in sizes 493x493mm and 393x393mm.

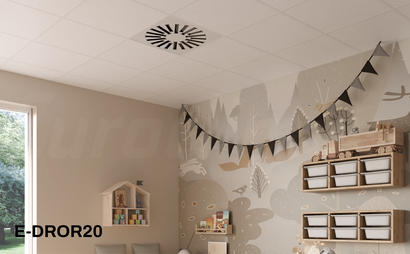

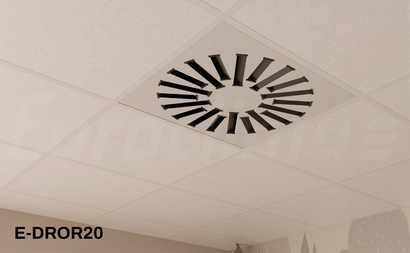

E-DROR20: Rotational diffuser with 20 slots. Also available in size 493x493mm.

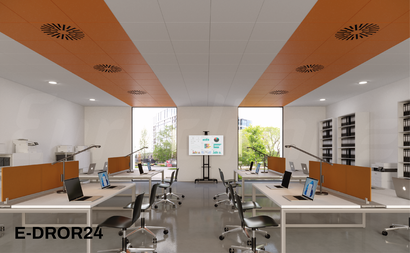

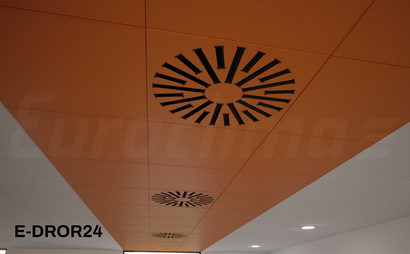

E-DROR24: Rotational diffuser with 24 slots.

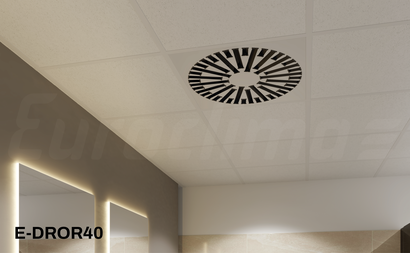

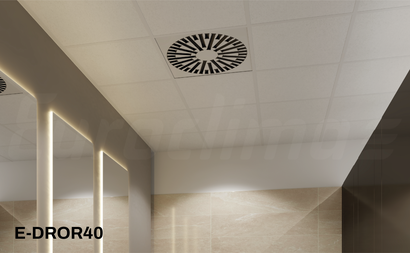

E-DROR40: Rotational diffuser with 40 slots.

Using the same system for blade securing and orientation, other sizes and designs can be manufactured depending on the quantity requested.

Mounting: Supported on the ceiling grid or attached to the plenum using a central screw.

Finish: White lacquer with black blades. Optionally, the blades can be white. Other finishes available upon request.

Applications: Rotational diffusers are used to distribute air, generally in commercial spaces (offices, bank branches, etc.). With the blades in the minimum opening position (22º), the diffuser has significant reach. However, with the blades at a 47º angle, the reach extends to 2.5 meters.
