Rotational diffuser made of a flat circular plate lacquered in white with slots. Characterized by the system used for securing the blades and their orientation. These blades can be precisely fixed at angles of 22º, 47º, or 62º.

Using the same system for blade securing and orientation, other sizes and designs can be manufactured depending on the quantity requested.

E-DROC10: Rotational diffuser with 10 slots and a diameter of 315mm. For airflows up to 150m³/h.

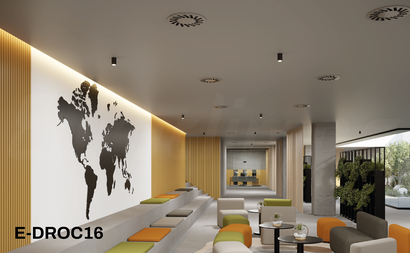

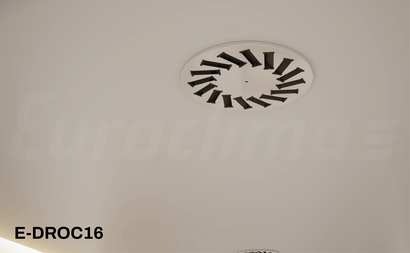

E-DROC16: Rotational diffuser with 16 slots and a diameter of 396mm. For airflows up to 250m³/h.

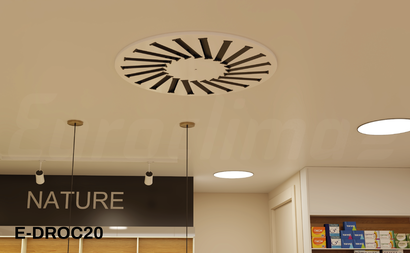

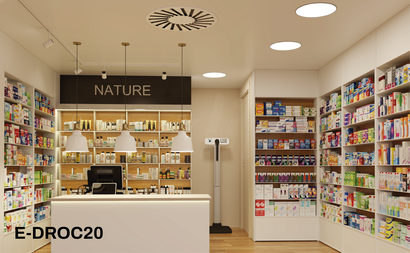

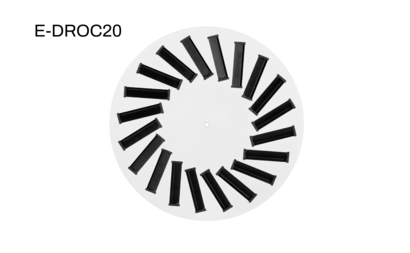

E-DROC20: Rotational diffuser with 20 slots and diameters of 495mm or 595mm. For airflows up to 315m³/h and 450m³/h, respectively.

E-DROC24: Rotational diffuser with 24 slots and a diameter of 595mm. For airflows up to 750m³/h.

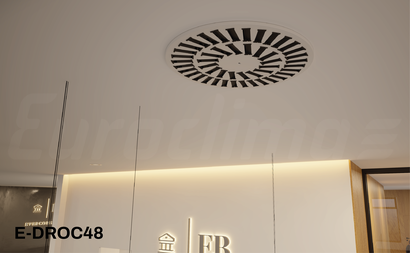

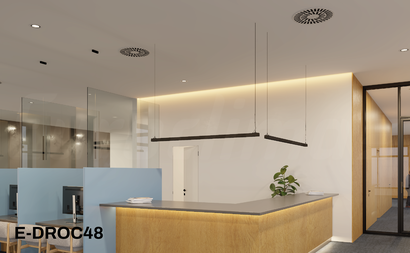

E-DROC48: Rotational diffuser with 48 slots and a diameter of 595 mm. For airflows up to 800 m³/h.

Using the same blade securing and orientation system, other sizes and designs can be manufactured depending on the quantity requested.

Mounting: To the plenum or mounting bridge using a central screw.

Finish: White lacquer with black blades. Optionally, blades can be white (consult for other finishes).

Applications: Rotational diffusers are used for air distribution, generally in commercial spaces (offices, bank branches, etc.).
