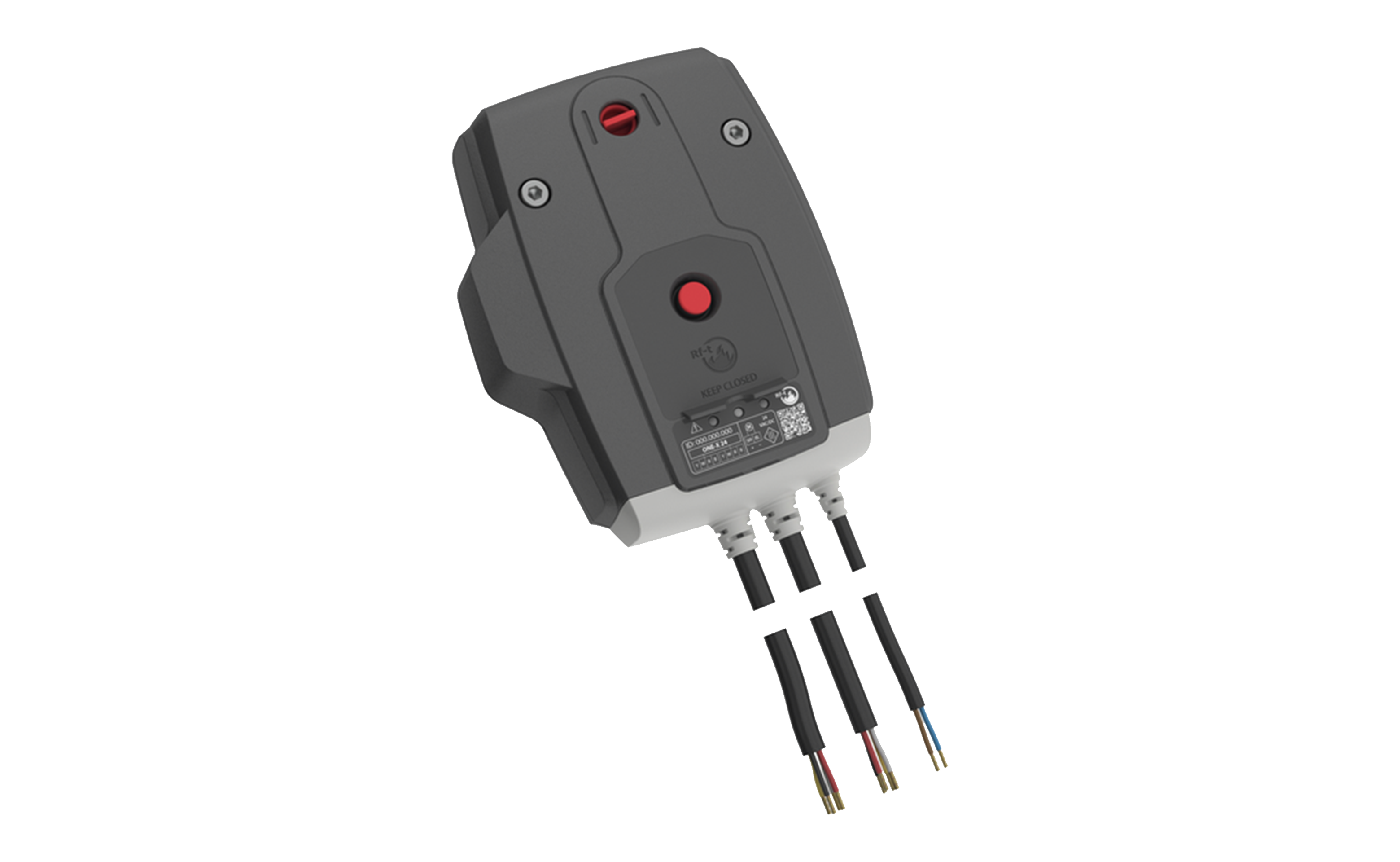

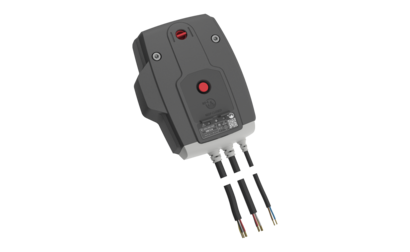

ONE-X: is a spring return actuator with integrated communication module designed to simply operate our dampers of all sizes, automatically or remotely. When powered, the actuator moves the damper blade to its stand-by position. When the power is interrupted or when the temperature in the duct exceeds 72ºC, the internal armed spring birngs the dampera blade back into its safety position. The motor can be reset manually by using a standard 9V battery. The integrated communication module enables monitoring and remote control of the fire dampera using a ZENiX controller. The status of the fire damper can be read over the bus, even when power is not connected to the firedamper. Three LEDs on the ONE-X indicate the status of the damper, bus communication, and any error messages. The ONE-X is available in two versions: 24 V and 230 V.

• Integrated solution saves installation time and reduces connextion mistakes.
• Predefined device address - no configuration required
• Service mode for local testing damper
• 3 LEDs indicate status, bus communication and errors.
• Low power consumption
