E-LO/ATPY and E-LO/BTPY

Linear grid with 15mm slat for laminated plaster walls

Downloads

Technical Specifications

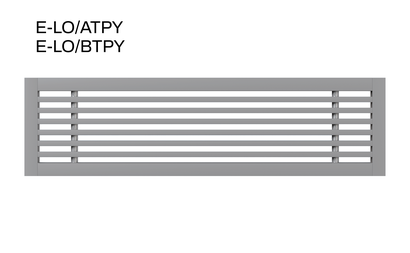

E-LO/ATPY Linear grille with fixed horizontal blades at 0º with a 15 mm flat frame. This grille has a depth of only 13 mm, allowing it to be installed in plasterboard partitions without needing to cut the supporting profiles.

E-LO/BTPY. Linear grille with fixed horizontal blades at 20º with a 15 mm flat frame. This grille has a depth of only 13 mm, allowing it to be installed in plasterboard partitions without needing to cut the supporting profiles. It can be supplied without length limit by adding sections. It allows on-site installation of flow regulators to be inserted between the metal support profiles of the partitions.

Fixtures: Mini-Latches.

Finish: Anodized aluminium or white lacquered aluminium. Ask about other finishes.

Applications: These grilles have been designed for those cases which require great lengths of grille, both outlet and return, it being possible to connect several of them to achieve any length. As it has the same thickness that has the laminated board it is no necessary to cut metal profiles that hold the wall. Due to their appearance, this type of grille is also used in more reduced dimensions, both in Outlet and return.

Outlet (5)

Promotional code: OUTLET00044

Price: 171.88

Quantity: 1

Description:

02.315.05120.0200.LA0S0: Rejilla E-LO/ATPY de L=5120 x H=200 lacado en blanco. Fijación mediante minipestillos. Sin remates.
