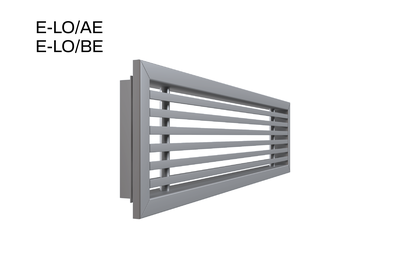

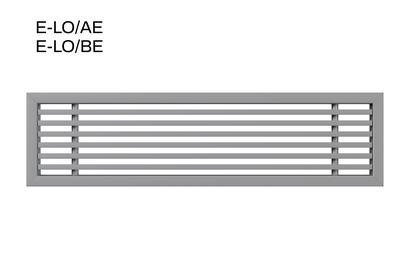

E-LO/AE. Linear supply grille with fixed 0º horizontal blades with 8 mm narrow frame, made with extruded anodized aluminium profiles.

E-LO/BE. Linear supply grille with fixed 20º horizontal blades and 12,5 mm narrow frame, made with extruded anodized aluminium profiles.

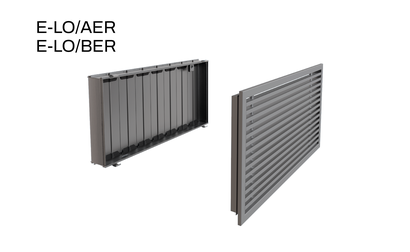

E-LO/AER. Linear supply grille with fixed 0º horizontal blades with 8 mm narrow frame, and flow regulation, made with extruded anodized aluminium profiles.

E-LO/BER. Linear supply grille with fixed 20º horizontal blades and 12,5 mm narrow frame, with flow regulation, made with extruded anodized aluminium profiles.

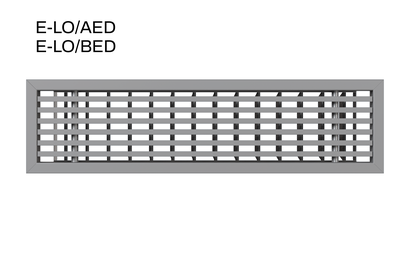

E-LO/AED: Linear supply grille with fixed horizontal blades at 0º with a narrow frame at 12.5 mm and deflection. Made with extruded and anodized aluminum profiles.

E-LO/BED. Linear supply grille with fixed 20º horizontal blades, 12,5 mm narrow frame and deflexion. Made with extruded anodized aluminium profiles.

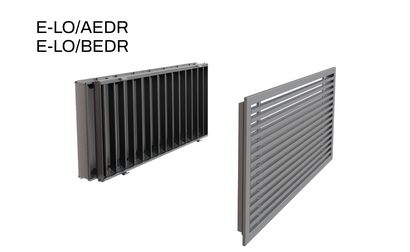

E-LO/AEDR: Linear supply grille with fixed horizontal blades at 0º with a narrow frame at 12.5 mm, deflection, and flow regulation. Made with extruded and anodized aluminum profiles.

E-LO/BEDR. Linear supply grille with fixed 20º horizontal blades, 12,5 mm narrow frame, deflexion and with flow regulation. Made with extruded anodized aluminium profiles.

Fixtures: Latch with frame E-MAE or E-TACO.

Finish: Anodized aluminium or white lacquered aluminium. Ask about other finishes.

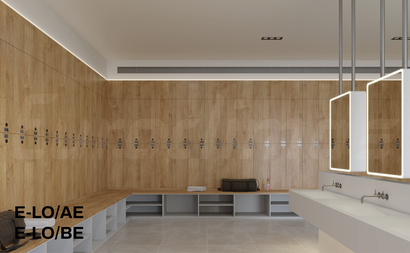

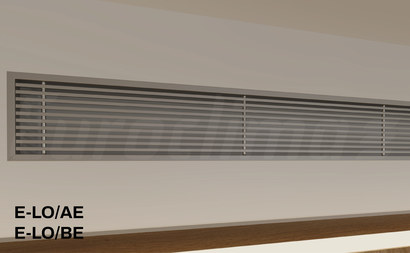

Applications: These grilles have been designed for those cases which require great lengths of grille, both Outlet and return, it being possible to connect several of them to achieve any length. They can also be used on the ceiling to create a curtain of air effect. Due to their appearance, this type of grille is also used in more reduced dimensions, both in Outlet and return.

• Promotional code: OUTLET00035
• Price: 17.64
• Quantity: 32
• Description:

02.207.00900.0125.AP000: E-LO/BE grille, L = 900 mm x H = 150 mm, anodized aluminum

Insert the promotional code when placing your order.

• Promotional code: OUTLET00014
• Price: 20.64
• Quantity: 20
• Description:

02.207.00600.0300.LP000: E-LO/BE grille, L = 600 mm x H = 300 mm, white lacquered aluminum. Attached with latches.

Insert the promotional code when placing your order.

• Promotional code: OUTLET00012
• Price: 14.03
• Quantity: 7
• Description:

02.207.00500.0200.AP000: E-LO/BE grille, L = 500 mm x H = 200 mm, anodized aluminum.  Attached with latches.

Insert the promotional code when placing your order.
