Rotational diffuser made of a flat circular plate lacquered in white with slots. Characterized by the system used for securing the blades and their orientation. These blades can be precisely fixed at angles of 22º, 47º, or 62º.

E-DROCR10: Rotational diffuser with 10 slots and a diameter of 315 mm.

E-DROCR16: Rotational diffuser with 16 slots and a diameter of 395 mm.

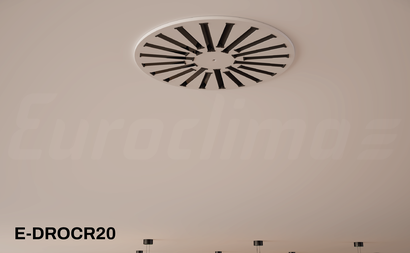

E-DROCR20: Rotational diffuser with 20 slots and diameters of 495 mm or 595 mm.

E-DROCR24: Rotational diffuser with 24 slots and a diameter of 595 mm.

E-DROCR40: Rotational diffuser with 40 slots and a diameter of 595 mm.

Mounting: To the plenum or mounting bridge using a central screw.

Finish: White lacquer with black blades. Optionally, blades can be white (consult for other finishes).

Applications: Rotational diffusers are used for air distribution, generally in tertiary sector locations such as offices or bank branches.
